Industrial Robots and Automations

I had opportunity to use my coding skills while working as an automation engineer in the R&D department at Prodieco and at the Burnside Autocyl as a robots programmer.

Below are some of the projects I have completed

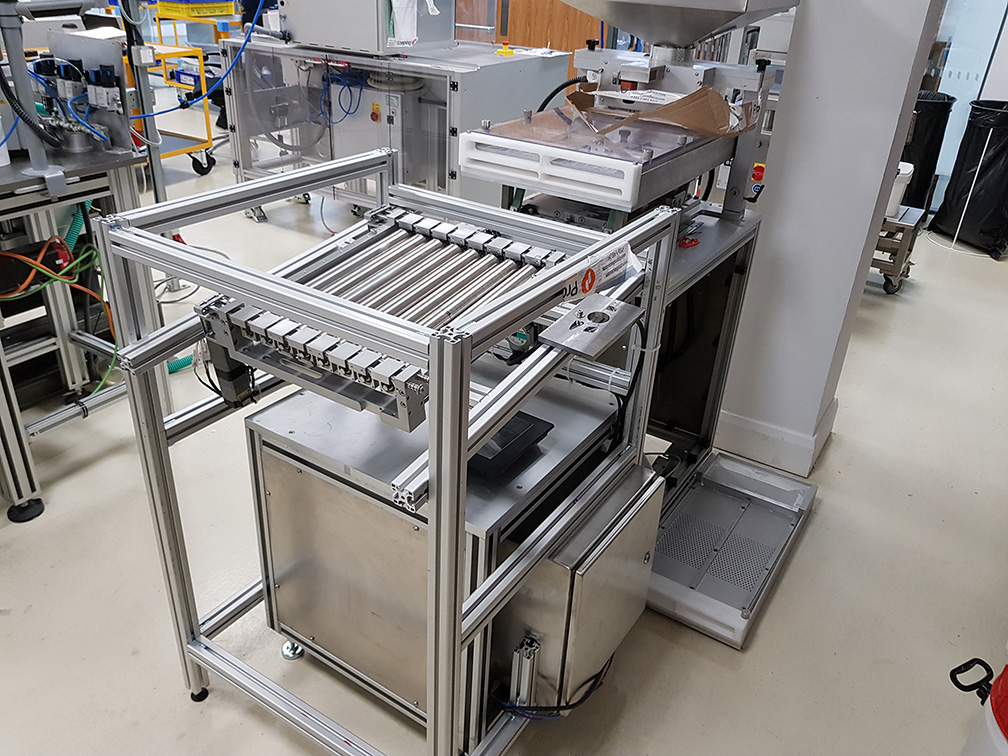

Machine for sorting tablets according to their thickness.

My task was to build a machine to sorting tablets. This machine was fitted just behind the exit from the eliminator broken tablets.

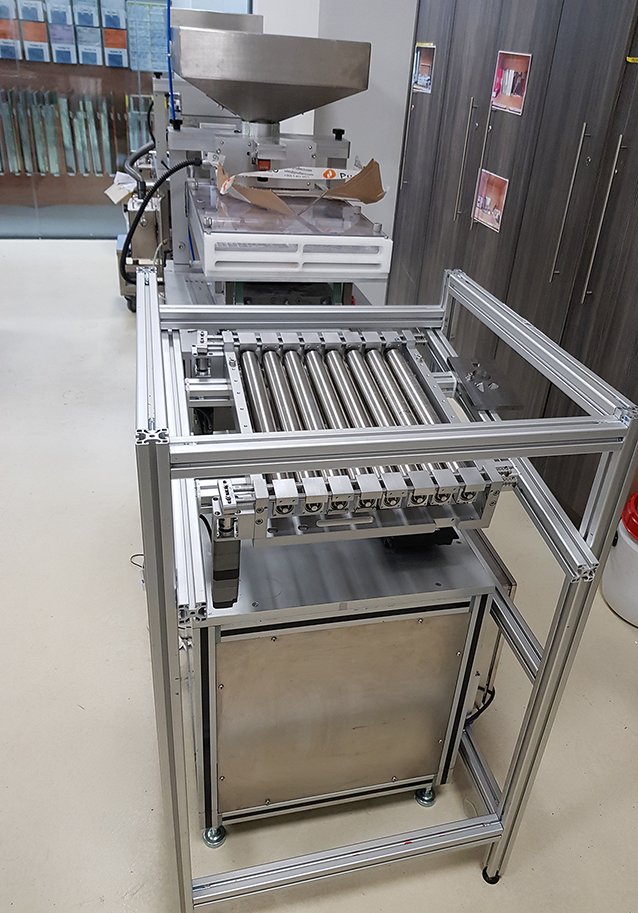

The tablet sorting device consists of eight rollers mounted on a guide.

Two DC stepper motors allow the rollers to move along the guide and thus create a gap through which tablets will pass to the other side if their size is within a set tolerance. An AC motor was used to rotate the rollers.

My responsibilities:

Assembly machine

Design the electrical wiring diagram

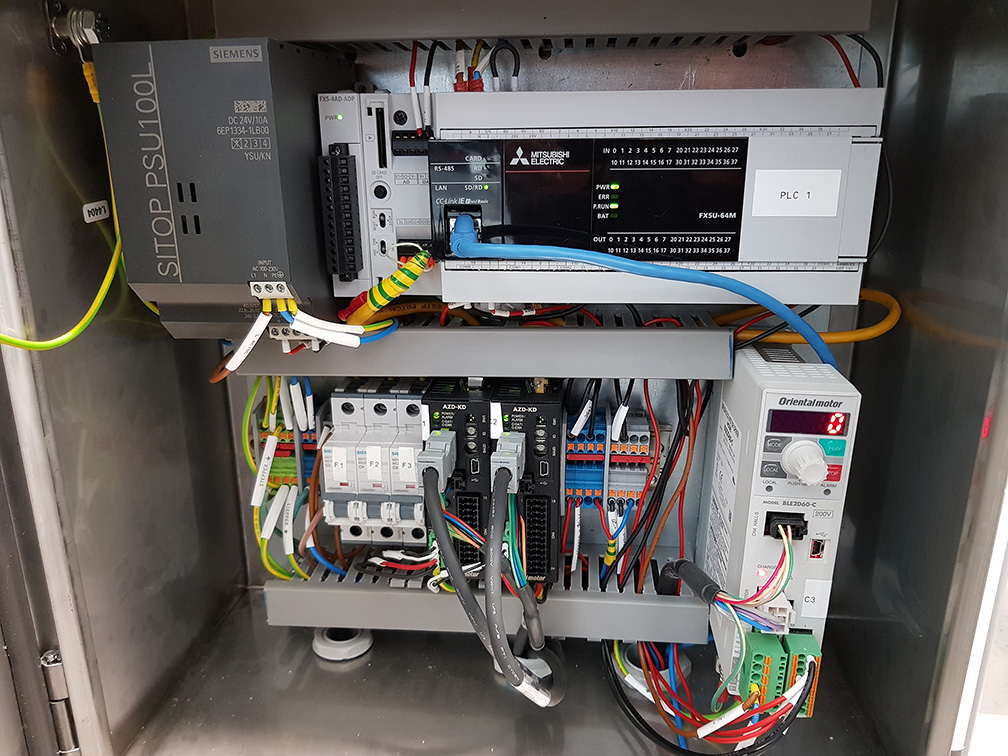

Build the electrical box

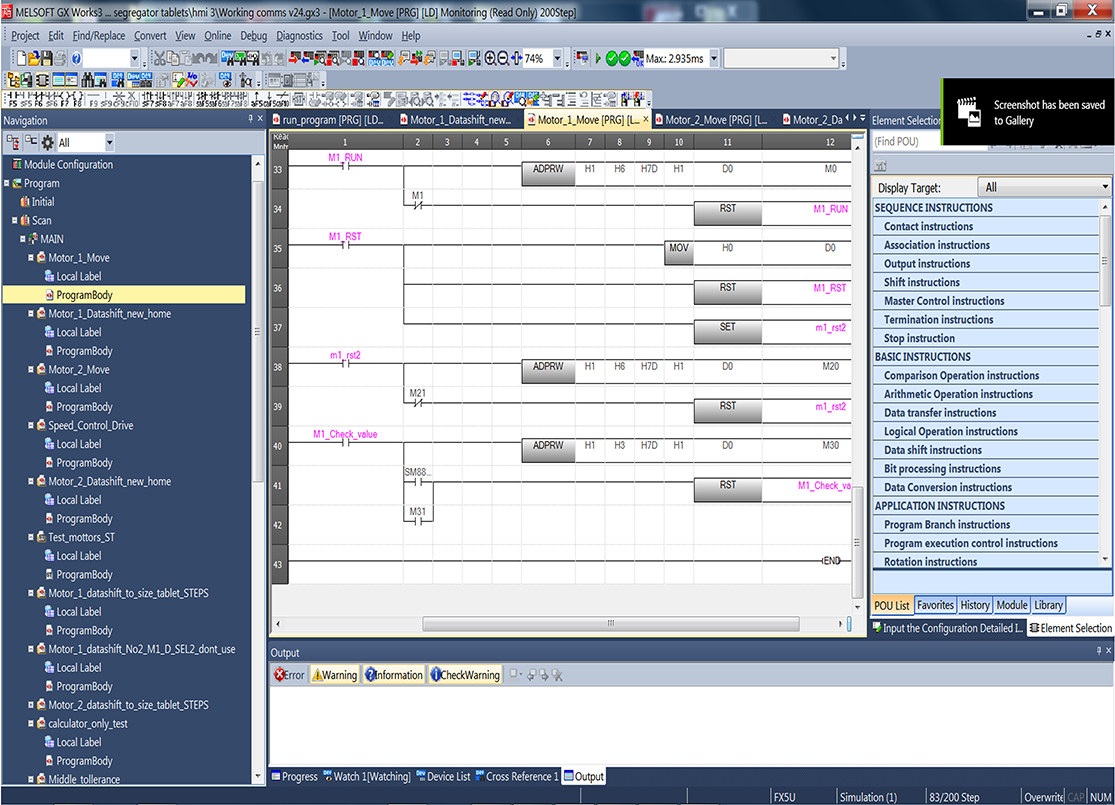

Write PLC program

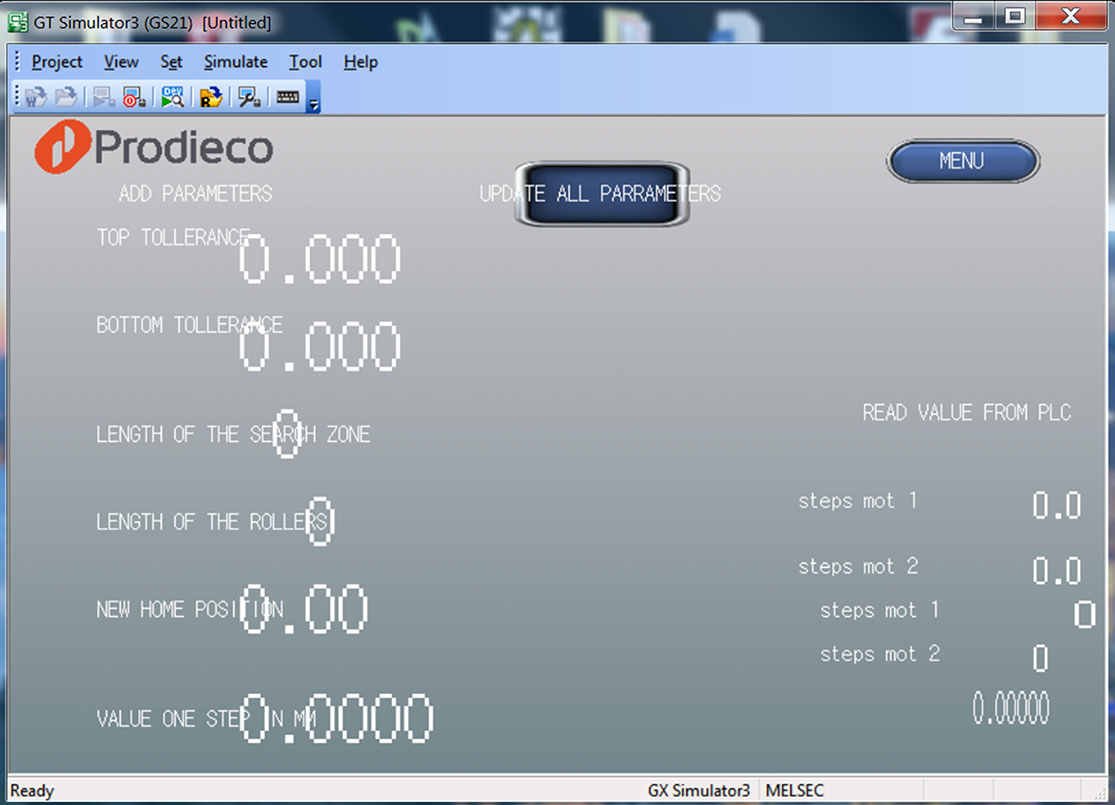

Design and Program HMI touch panel

Test

Modifications

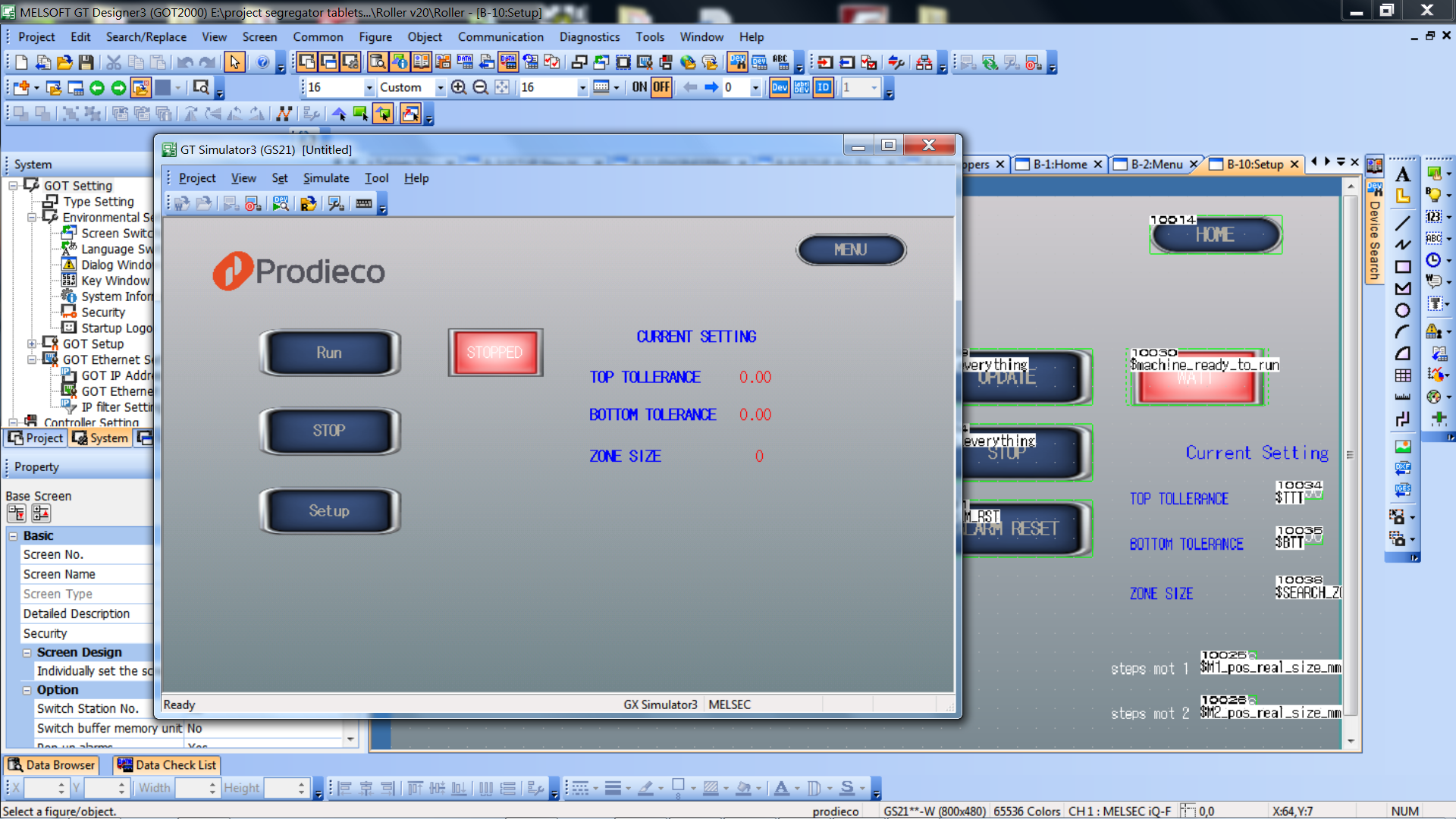

The device was controlled by a Mitsubishi FX5U. To create program for PLC and HMI used MELSOFT GX Works 3 and GT-DESIGNER 3.

The algorithm for determining the drop zone was created in Excel and converted to PLC.

Robots ABB

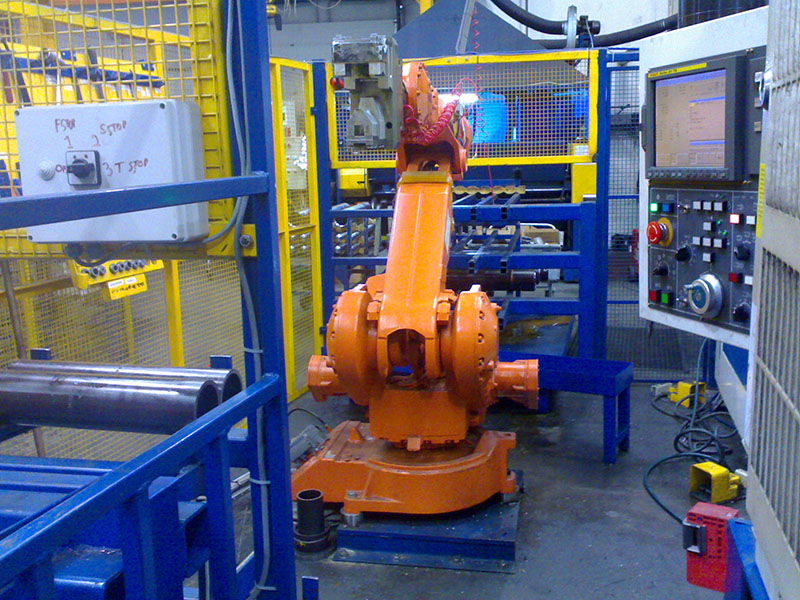

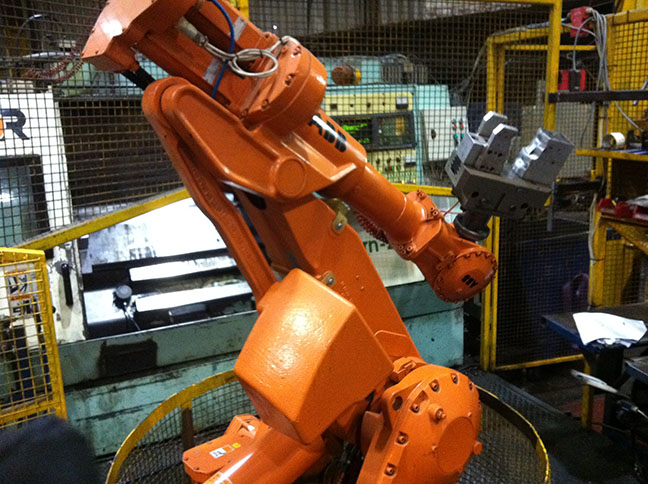

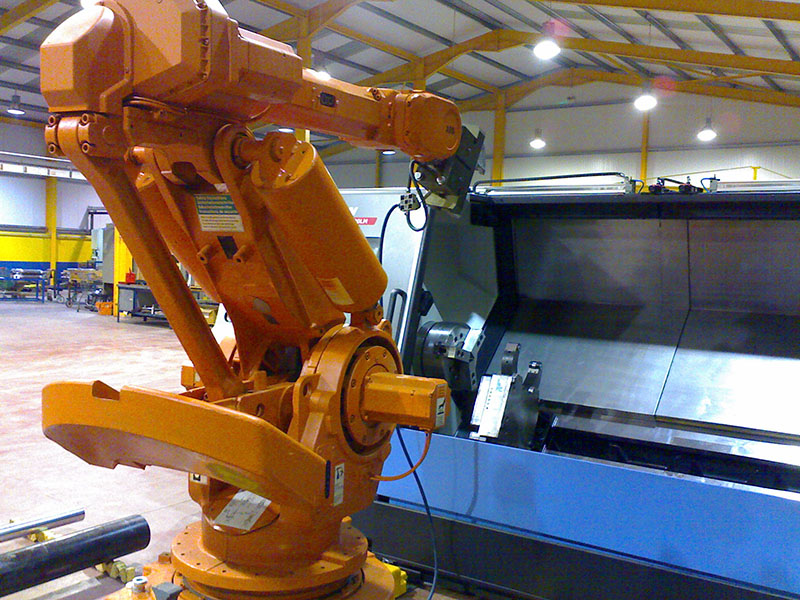

While working at Burnside Autocyl as a Manufacturning Engineer I programmed numerically controlled machines such as multi-spindle lathes and milling machines using G-codes, and also operated and programmed ABB industrial robots. I had the opportunity to redesign a robotic workstation that consisted of one robot and two multi-spindle lathes. I have also improved other robotic workstations located in the factory. In the examples below you will find some of the stations I worked on. I used Robot Studio to learn how to program the robots.
